How to service hardisk  seagate

Actually We have seen some cases, the Seagate hard drive that short-circuit. Conslieting on this hard drive power supply also led to death or to protectionism and the computer can not even turned on. Perhaps you have or are experiencing this, you short-circuit the seagate hard drive, but more data is stored in the disk itself. How can a short-circuit seagate harddisk service?

Below we will try to share about how to service the short-circuit seagate hard drive.

Preparation Equipment:

1. Star screwdriver: to open the board hard drive screws.
2. Multitester: to check the short-circuit diode components.
3. Solder and Tin / tenol: who is used to replace damaged components.
4. Spare parts diode 1A - 2A: buy electronics stores.

 How to Service a short-circuit Seagate Harddisk:

• For short-circuit that lies the hard drive components on the inside, you need to open the screw at boardnya.

• To drive short-circuit that component has been seen directly, you do not need to open boardnya.
• Short-circuit on the Seagate hard drive is often the case in the voltage of 12 volts DIODE his safety. 12 voltnya voltage power supply cables are colored yellow. While the red wire voltage is 5 volts. Sometimes the security DIODE 5 volts also had a short-circuit, but rarely.



• DIODE safety checks voltnya voltage 12. DIODE also a safety check 5 voltnya. see in the picture. How to check a diode can be read here. A good way of soldering can be found here

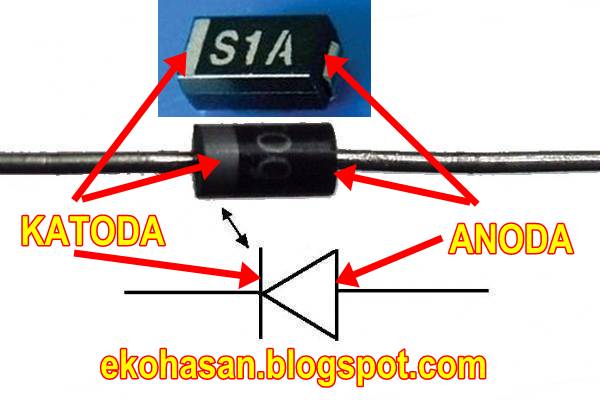

• Immediately replace the hard drive that short-circuit diode diodes tersebut.dengan 1-2 Ampere, purchased at many electronics stores. Note the position of the anode and cathode.

• Harddisk ready to trial.

We can not guarantee it works 100%, because it could be the chipset disk has joined a short-circuit / broken. But from our experience, many brands, especially hard drives Seagate has come back to normal again.

Good luck
